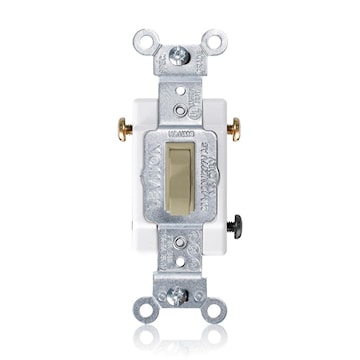

LEVITON 54523-I Commercial Grade Toggle Quiet Switch 3-Way 20 A, 120/277 VAC, Side Wire
lev54523i
LEVITON 54523-I Commercial Grade Toggle Quiet Switch 3-Way 20 A, 120/277 VAC, Side Wire
Price
$34.62
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:54523-I
Description
Commercial specification grade switch are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Side and back wired terminal screws accept up to a #10 AWG solid copper wire.
Specifications
| Brand Name | Leviton | Sub Brand | Comm Switches |
| Item Name | Commercial Grade Toggle Quiet Switch | Type | 3-Way |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 20 A |
| Actuator | Cam | Color | Ivory |
| HP Rating | 1 hp at 120 V, 2 hp at 240 - 277 V | Grade | Commercial |
| Wiring Configuration | Side Wire | Terminal Connection | Screw |
| Operating Cycles | 50000 | Material | Thermoplastic, Plated Steel Screw, Steel Strap |
| Dimensions | 1.31 in W x 0.92 in D x 46 in H | Mounting | Wallplate, Flush, Screw |
| Standards | UL Fed Spec WS896, NEMA (WD-1, WD-6), ANSI, UL Listed (E-7458), CSA Certified (152105), NOM Certified (057) | Application | Commercial |
| UPC | 068679164485 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 4000 - Pallet |
