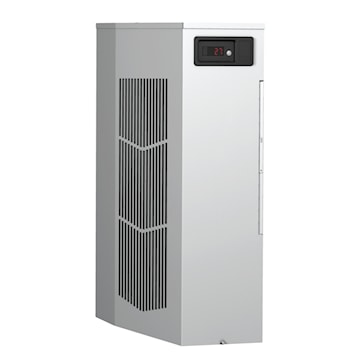

HOFFMAN N280446G050 Spectracool Air Conditioner Narrow, Compact 4000 Btu 400 - 460 VAC,

Price $7,693.88 / EA
Inventory
In Stock
Qty EA
Manufacturer:HOFFMAN
Manufacturer #:N280446G050

Description

Narrow design accommodates 12 inch deep cabinets. R134A earth-friendly refrigerants. UL listed with agency approvals. Attractive industrial design with minimal use of visible fasteners. Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side. Galvanized sheet metal cover for rugged factory environments. Easy-mount flanges for simple installation. Cut-out adaptor options for enclosures with GENESISĀ® air conditioners enable users to easily transition to the new unit. Dust-resistant condenser coil allows the unit to be run filterless in most applications. Cleanable, reusable aluminium mesh filter protects coils for maximum cooling performance. Mounting hardware, gaskets and user manual furnished with the unit. Standard indoor air conditioner models also include active condensate management. Power-off relay for door switch and other system requirements. Malfunction switch. RAL 7035 light-grey, semi-textured powder-coat paint.

Specifications

Brand Name nVent Hoffman Sub Brand Spectracool
Item Name Air Conditioner Type Narrow, Compact
Cooling Capacity 4000 Btu Voltage Rating 400 - 460 VAC
Flow Rate Internal Loop: 138 ft³/min at 50 Hz, 143 ft³/min at 60 Hz, External Loop: 268 ft³/min at 50 Hz, 288 ft³/min at 60 Hz Control Type Mechanical Thermostat
Series 21918 Amperage Rating 2.5 A
Frequency Rating 50/60 Hz Power Rating 1172 W
Temperature Rating -40 to 125 °F Compressor Type Reciprocating
Refrigerant Type R-134A Sound Level 65.5 dB
Enclosure Type NEMA 4X, IP34, IP56 Material Stainless Steel
Color RAL 7035 Light Gray/Semi-Textured Powder Coated Dimensions 11-1/2 in W x 14 in D x 28 in H
Includes Active Condensate Management, Power-Off Relay, Malfunction Switch Standards UL/cUL Listed, CE Certified, Telcordia GR-487 Capable, RoHS Compliant
Application For Industrial Automation, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense Systems UPC 783510219185

Packages

1 - Unit
