micbq222vnh

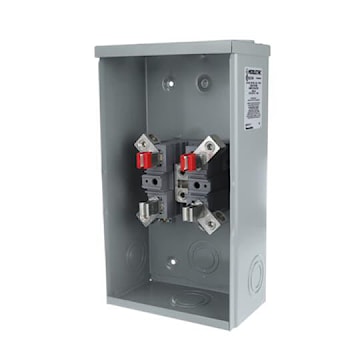

ABB BQ2-22VNH Microlectric® Single Position Meter Socket with Twin Hub 200 A, 1 PH, 600 V
micbq222vnh
ABB BQ2-22VNH Microlectric® Single Position Meter Socket with Twin Hub 200 A, 1 PH, 600 V
Price
$224.77
/ EA
Inventory
In Stock
Manufacturer:ABB
Manufacturer #:BQ2-22VNH
Description
Meter socket, BQ2 Series, standard enclosure, 200A 600V, 6 AWG–250 kcmil conductor range. Aluminum tunnel type connectors for both load and line sides. Supplied with screw type ring. Weatherproof Type 3R enclosure.
Specifications
| Brand Name | ABB | Sub Brand | Microlectric® |
| Item Name | Single Position Meter Socket with Twin Hub | Type | Standard |
| Amperage Rating | 200 A | Voltage Rating | 600 V |
| Phase | 1 | Number of Positions | 1 |
| NEMA Rating | Type 3R Weatherproof | Mounting Type | Surface |
| Dimensions | 8-47/64 in W x 5-13/32 in D x 15-5/8 in H | Standards | CSA 27716 |
| Application | For Overhead Installation | UPC | 624871002132 |
Packages
| 1 - Crate | 64 - Pallet | 80 - Pallet |
