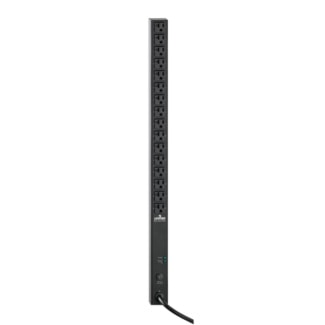

LEVITON P1042-10L P1000 Series Power Distribution Unit 20 A, 120 VAC, Painted
levp104210l
LEVITON P1042-10L P1000 Series Power Distribution Unit 20 A, 120 VAC, Painted
Price
$176.49
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:P1042-10L
Description
Unmetered vertical rack power distribution unit. 16 receptacles, L5-20P plug type. 18 AWG cold-rolled steel enclosures. Overload protection with easy to reset circuit breakers. Dual pole breakers on 208 V models for added safety. 30 A units feature UL489 rated circuit breakers. LED indicators for Power On and Polarity/Ground OK. Grounding connection point on all models. Available for zero-u and rack mount applications. Rack power distribution units are the ideal solution for data centres, computer rooms and other high-demand environments that require always on power.
Specifications
| Brand Name | Leviton | Sub Brand | PDUS |
| Item Name | Power Distribution Unit | Type | Vertical |
| Voltage Rating | 120 V | Amperage Rating | 20 A |
| NEMA Configuration | NEMA 5-20R, L5-20P | Enclosure Standard | Painted Steel |
| Dimensions | 1.8 in L x 1-3/4 in W x 30 in H | Series/Model | P1000 |
| Frequency Rating | 50/60 Hz | Cord Length | 10 ft |
| Material | 18 ga Cold Rolled Steel | Color/Finish | Painted |
| Mounting Type | Zero-U | Temperature Rating | 0 °C to 40 °C |
| Standards | cULus Listed, UL 1363 (15 and 20 Amp), UL 60950-1 (30 Amp) | Application | For Data Centers, Computer Rooms, other High-Demand Environments |
| UPC | 078477308905 |
Packages
| 1 - Unit | 112 - Pallet |
