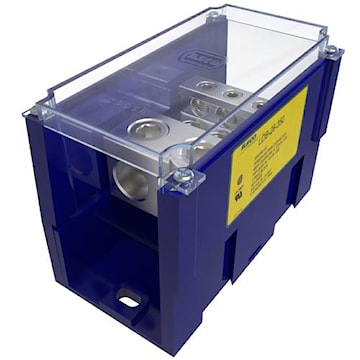

ILSCO LDB-26-350 SnapBloc® Power Distribution Block 350 kcmil - 6 AWG Primary, 2/0 - 14 AWG Secondary 620 A,
ilsldb26350
ILSCO LDB-26-350 SnapBloc® Power Distribution Block 350 kcmil - 6 AWG Primary, 2/0 - 14 AWG Secondary 620 A,
Price
$322.16
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:LDB-26-350
Description
Dual rated modular power distribution block. Multiple conductor capability. Simplifies stocking. Combines any number of blocks with multiple conductor ranges into the specific configuration required for the job. Unique locking feature allows individual blocks to be combined quickly without special tools. Suitable for use with both copper and aluminum conductors in any combination. Permits visual inspection.
Specifications
| Brand Name | Ilsco | Sub Brand | SnapBloc® |
| Item Name | Power Distribution Block | Type | LDB |
| Voltage Rating | 600 V | Amperage Rating | 620 A |
| Conductor Size | 350 kcmil - 6 AWG Primary, 2/0 - 14 AWG Secondary | Connection Type | Screw Terminal |
| Temperature Rating | 90 °C | Block Material | Aluminum |
| Color | Blue | Dimensions | 76.2 mm W x 139.7 mm H |
| Includes | 2 Side Panel | Standards | CSA File No. LR-29601, UL 1059 |
| Application | Tap Connector | UPC | 783669595307 |
Packages
| 1 - Unit |
