Description

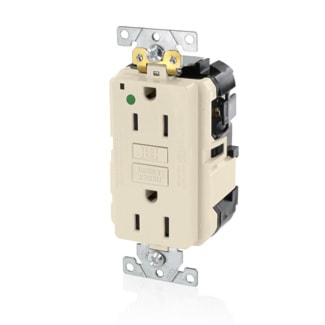

Extra-heavy duty hospital grade Lev-Lok® self-test GFCI non-tamper resistant receptacle, NEMA 5-15R. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes. Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost.
Specifications
Brand Name | Leviton | Sub Brand | Smart-Lock Pro |
Item Name | GFCI Receptacle | Type | Self-Test, Slim |
Grade | Extra Heavy-Duty Hospital | Voltage Rating | 125 V |
Amperage Rating | 15 A | Wattage | 1 hp |
Number of Poles | 2 | Number of Wires | 3 |
NEMA Configuration | NEMA 5-15R | Short Circuit Rating | 2 kA |
NEMA Rating | 5-15R | Material | Polycarbonate/PBT |
Color | Light Almond | Grounding | Self-Grounding |
Temperature Rating | -35 °C to 66 °C | Environmental Conditions | UL 94 V-0 Flammability |
Standards | ANSI C-73, CSA C22.2 No. 42 & 144, FedSpec W-C-596, UL 498, UL 943, UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 | Application | Extra-Heavy Duty Hospital Grade |
UPC | 078477724323 |
Packages
1 - Unit | 10 - Crate | 2320 - Pallet |
