lev16462w

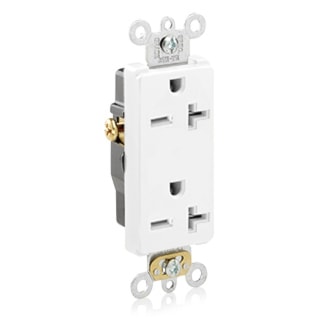

LEVITON 16462-W Decora Plus™ Outlet Straight Blade Duplex Receptacle 20 A, 6-20R White
lev16462w
LEVITON 16462-W Decora Plus™ Outlet Straight Blade Duplex Receptacle 20 A, 6-20R White
Price
$44.30
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:16462-W
Description
Leviton's line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.52 W x 1.14 D IN |
| Voltage Rating | 250 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 6-20R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | White | Finish | Matte |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 38.7 mm W x 22.4 mm D x 103.2 mm H | Mounting Type | Wallbox, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498, UL File Number E13399, CSA File Number LR406, CSA C22.2 No. 42, NOM 057 Certified, NEMA WD-1, WD-6 | Application | Commercial |
| UPC | 078477819500 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
