lev5280b

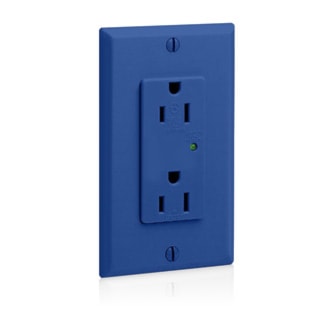

LEVITON 5280-B Decora Plus™ 3-Speed, Surge Protection, 2-Outlet, 1-Unit Straight Blade Duplex Receptacle with Function Lighting 15 A, Blue

Price $92.24 / EA
Inventory
In Stock
Qty EA
Manufacturer:LEVITON
Manufacturer #:5280-B

Description

Levitons surge protection receptacle can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment in industrial, commercial and residential locations from the stress and degradation inflicted by voltage transients. Leviton surge protection receptacle are compliant with UL 1449 Standards. Receptacle divert damaging voltage transients or surges away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications

Brand Name Leviton Sub Brand Decora Plus™
Item Name Straight Blade Duplex Receptacle with Function Lighting Type 3-Speed, Surge Protection, 2-Outlet, 1-Unit
Grade Commercial Size 3.81 H x 1.7 W x 1.47 D IN
Voltage Rating 125 V Amperage Rating 15 A
Number of Poles 2 Number of Wires 3
Connection Type Back and Side Wire Short Circuit Rating 5 kA
Material Thermoplastic Color Blue
Finish Matt Grounding Self-Grounding
Dimensions 44.958 mm W x 39.624 mm D x 106.934 mm H Mounting Type Screw, Box, Flush
Temperature Rating -40 °C to 60 °C Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Standards NEMA (WD-1, WD-6), ANSI (C-73), UL Listed (498), UL Listed (1449), CSA Certified (C22.2), NOM Certified (057) Application Commercial
UPC 078477008843

Packages

1 - Unit 10 - Crate 1300 - Pallet
