lev5362ig

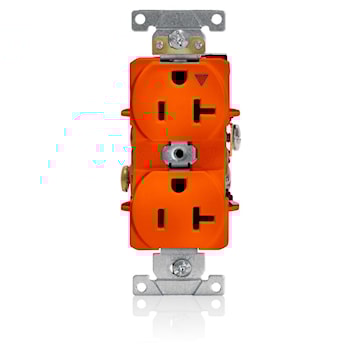

LEVITON 5362-IG Narrow, 1-Unit, 2-Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Orange
lev5362ig
LEVITON 5362-IG Narrow, 1-Unit, 2-Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Orange
Price
$48.84
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5362-IG
Description
Levitons line of extra heavy-duty industrial grade receptacle are designed and manufactured to withstand the most demanding environments. These industrial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Narrow, 1-Unit, 2-Outlet |
| Grade | Industrial | Size | 46 H x 1.33 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wire |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Orange |
| Finish | Matt | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Contact Material | Brass |
| Dimensions | 33.7 mm W x 28.4 mm D x 103.2 mm H | Mounting Type | Screw, Wall Box, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) | Application | Industrial |
| UPC | 078477052457 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 6400 - Pallet |
