lev5822w

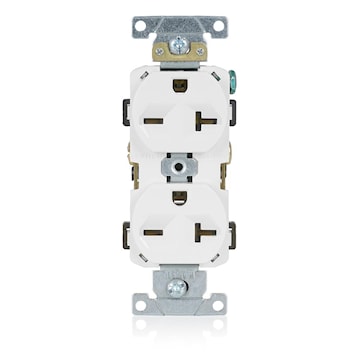

LEVITON 5822-W Outlet Straight Blade Duplex Receptacle 20 A, 6-20R White
lev5822w
LEVITON 5822-W Outlet Straight Blade Duplex Receptacle 20 A, 6-20R White
Price
$31.87
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5822-W
Description
Levitons line of heavy-duty specification grade receptacle are designed and manufactured to withstand the most demanding environments. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Industrial | Size | 46 H x 1.56 W x 19 D IN |
| Voltage Rating | 250 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Side Wire | NEMA Rating | 6-20R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | White | Finish | Matte |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 39.5 mm W x 27.6 mm D x 103.2 mm H | Mounting Type | Wallbox, Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-2, WD-6 | Application | Commercial Grade |
| UPC | 078477790434 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
