levcr015

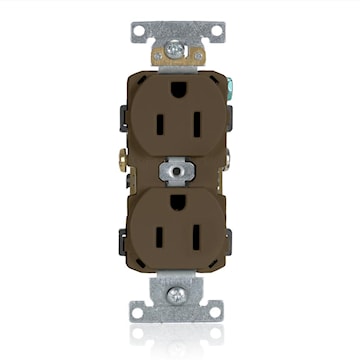

LEVITON CR015 Receptacle straight duplex slim body 2P 3W 125V 15AMP brown
levcr015
LEVITON CR015 Receptacle straight duplex slim body 2P 3W 125V 15AMP brown
Price
$5.58
/ EA
Inventory
Available for backorder
Package: 10 / Box
Manufacturer:LEVITON
Manufacturer #:CR015
Description
Leviton’s line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Type | Duplex Outlet,Straight Blade | Grade | Commercial Specification |
| Size | 46 H x 1.53 W x 1.245 D IN | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Side Wired |
| NEMA Rating | 5-15R | Material | Nylon |
| Color | Brown | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-2, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Application | Commercial | UPC | 078477815212 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 6400 - Pallet |
