levm1636ilt

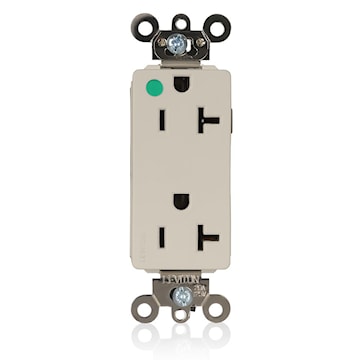

LEVITON M1636-ILT Receptacle duplex modular illuminated 20A 125V light-almond
Final sale
levm1636ilt
LEVITON M1636-ILT Receptacle duplex modular illuminated 20A 125V light-almond
Price
$65.77
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:M1636-ILT
Description
Lev-Lok® Hospital grade duplex straight blade modular wiring receptacle. Nylon body and face. Nickel-plated brass strap. Nickel-plated brass ground clips. 0.04 inch brass line contacts. Solid brass locking pins. 1 HP rating. Self-grounding. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. 100000 HR green LED's illumination. Rated V-2 per UL94 flammability. -40 to 60°C operating temperature. Decora® illuminated Face. Modular terminals. Illuminated receptacles has been expanded with the addition of Decora® illuminated duplex receptacles. The illuminated face makes it easy to identify energized receptacles in both light and dark conditions, making them ideal for use on emergency circuits. Satisfies National Electric Code (NEC) requirements for safety while at the same time confirming power to the receptacle.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok® |
| Type | Duplex Outlet,Straight Blade | Grade | Extra Heavy-Duty Hospital |
| Size | 462 H x 1.549 W x 1.245 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Modular Terminal |
| NEMA Rating | 5-20R | Material | Thermoplastic |
| Color | Light Almond | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File 152105);UL Listed 498 and Fed Spec WD496 (E13399);RoHS Compliant |
| Application | Commercial | UPC | 078477592892 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
