levm8300ilg

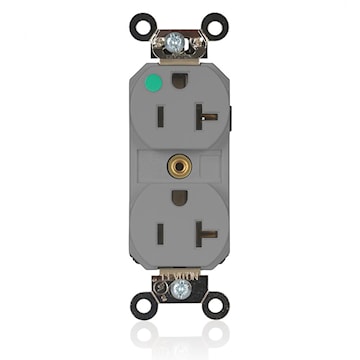

LEVITON M8300-ILG Receptacle duplex illuminated 20A 125V grey
levm8300ilg
LEVITON M8300-ILG Receptacle duplex illuminated 20A 125V grey
Price
$65.77
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:M8300-ILG
Description
Extra heavy duty hospital grade duplex receptacle. Smooth face, illuminated. NEMA type-5-20R. The Lev-Lok® modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok® |
| Type | Duplex Outlet,Straight Blade | Grade | Extra Heavy-Duty Hospital |
| Size | 46 H x 1.53 W x 1.22 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Modular Terminal |
| NEMA Rating | 5-20R | Material | Thermoplastic Rubber |
| Color | Gray | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA Certified (File 152105);UL Listed 498 and Fed Spec WD496 (E13399);RoHS Compliant |
| Application | Commercial | UPC | 078477553039 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
