levm8300plw

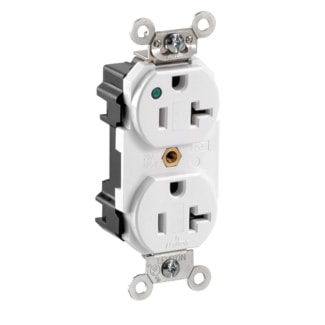

LEVITON M8300-PLW Receptacle duplex power indication nylon 20A 125V white

Price $68.63 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:LEVITON
Manufacturer #:M8300-PLW

Description

Duplex receptacle, NEMA 5-20R. 2-pole, 3-wire. Straight blade. Extra heavy duty hospital grade, power indication. Self grounding, nickel plated brass strap. The Lev-Lok® Modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok® brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades and heavy duty commercial grade platforms.

Specifications

Brand Name Leviton Sub Brand Lev-Lok®
Type Duplex Outlet,Straight Blade Grade Extra Heavy-Duty Hospital
Size 46 H x 1.53 W x 1.22 D IN Voltage Rating 125 V
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 Connection Type Modular Terminal
NEMA Rating 5-20R Material Thermoplastic
Color White Phase 1
Dielectric Strength 2000 (Min.) Grounding Self-Grounding
Mounting Type Wall Box Temperature Rating -40 to 60 °C
Environmental Conditions Flammability (Rated V-2 Per UL94) Standards NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);cULus Listed
Application Commercial UPC 078477442791

Packages

1 - Unit 10 - Box 50 - Crate 4500 - Pallet
