levm8300sgw

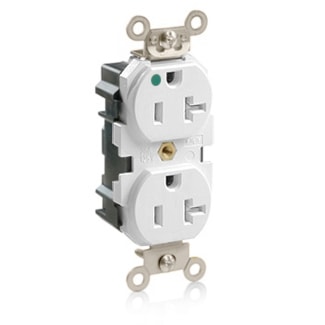

LEVITON M8300-SGW Receptacle duplex smooth face tamper-resistant 20A 125V white

Price $68.63 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:LEVITON
Manufacturer #:M8300-SGW

Description

Lev-Lok® Extra heavy-duty hospital grade smooth face duplex receptacle. Nickel-plated brass single-piece, wrap-around mounting strap with integral ground contacts, for continuous conductivity and secure ground path. Constructed with impact-resistant thermoplastic nylon, assuring durability of the device. Extra heavy-duty triple wipe T contacts provide superior plug retention force to meet the rugged plug demands found in healthcare environments. Grounding clip permanently secured to strap makes for most reliable ground connection. Smooth face prevents dirt from collecting and makes cleaning faster and simpler. Four corner latches securely fasten the devices face to the body. Wiring modules are also available with UL Type XHHW-2 building wire for low leakage current applications.

Specifications

Brand Name Leviton Sub Brand Lev-Lok®
Type Duplex Outlet,Straight Blade Grade Extra Heavy-Duty Hospital
Size 46 H x 1.53 W x 1.22 D IN Voltage Rating 125 V
Amperage Rating 20 A Number of Poles 2
Number of Wires 3 Connection Type Modular Terminal
NEMA Rating 5-20R Material Thermoplastic
Color White Phase 1
Dielectric Strength 2000 (Min.) Grounding Self-Grounding
Mounting Type Wall Box Temperature Rating -40 to 60 °C
Environmental Conditions Flammability (Rated V-2 Per UL94) Standards NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);cULus Listed
Application Commercial UPC 078477363942

Packages

1 - Unit 10 - Box 50 - Crate 4500 - Pallet
