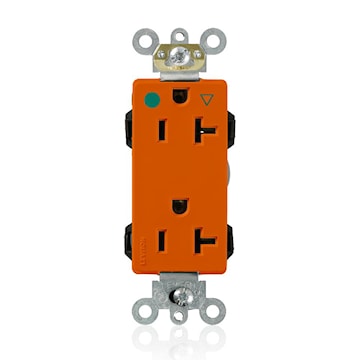

LEVITON MD830-IG Receptacle duplex isolated ground nylon 20A 125V orange
levmd830ig
LEVITON MD830-IG Receptacle duplex isolated ground nylon 20A 125V orange
Price
$63.53
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:MD830-IG
Description
Duplex receptacle, NEMA 5-20R. 2-pole, 3-wire. Lev-Lok® Decora® straight blade. Hospital grade. Isolated ground. Modular terminals. Plated steel strap. The Lev-Lok® Modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok® brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades and heavy duty commercial grade platforms.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok® |
| Type | Duplex Outlet,Straight Blade | Grade | Heavy-Duty Hospital |
| Size | 46 H x 1.55 W x 1.42 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Rating | 5-20R |
| Material | Thermoplastic | Color | Black,Orange,White |
| Phase | 1 | Dielectric Strength | 2000 (Min.) V |
| Grounding | Self-Grounding | Temperature Rating | -40 to 60 °C |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399);RoHS Compliant | Application | Commercial |
| UPC | 078477511367 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 2640 - Pallet |
