lev5490bu

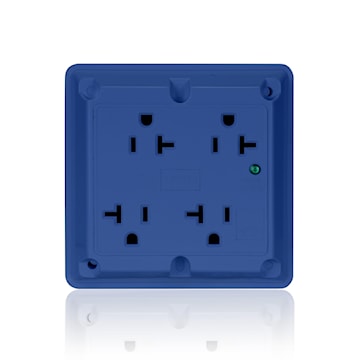

LEVITON 5490-BU 4-in-1 Surge Protective Receptacle 20 A, Blue

Price $136.01 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:LEVITON
Manufacturer #:5490-BU

Description

Extra heavy duty specification grade surge protective 4-in-1 receptacle. NEMA type-5-20R. Grounding. Surge with indicator light. Indicator light assures you that your critical equipment is protected.

Specifications

Brand Name Leviton Sub Brand 4-in-1 Surge Receptacles
Item Name Surge Protective Receptacle Type 4-in-1
Grade Commercial Specification Size 4.50 W x 1.15 D IN
Voltage Rating 125 V Amperage Rating 20 A
Number of Poles 2 Number of Wires 3
Short Circuit Rating 5 KAMP Conductor Size 14-10 AWG
Material Polycarbonate Color Blue
Grounding Grounding Contact Material Brass
Dimensions 4.5 in W x 1.15 in D Mounting Type Box
Temperature Rating -40 °C to 60 °C Environmental Conditions Flammability (Rated V-2 per UL94)
Standards NEMA WD-1, WD-6, ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL 498 (File E13399) Application For Commercial Use
UPC 078477843598

Packages

1 - Unit 10 - Crate 1600 - Pallet
