levt8280i

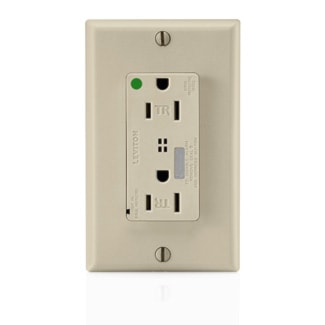

LEVITON T8280-I Receptacle duplex surge protective 15A 125V ivory

Price $121.51 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:LEVITON
Manufacturer #:T8280-I

Description

Decora Plus® Hospital grade duplex tamper-resistant surge protective receptacle. Nylon face. Polycarbonate base. Brass triple-wipe line contact. Brass-plated steel terminal screws and grounding screw. Zinc-plated steel yoke and clamp nut. Brass-plated steel ground clip. Steel strap. 15 A, 125 V, NEMA-5-15R, 2-pole, 3-wire. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. -40 to 60°C operating temperature. 20 A feed through. Straight blade. Surge with indicator light and audible alarm. Back and side wired. Surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

Specifications

Brand Name Leviton Sub Brand Decora Plus
Type Type 3 SPD Grade Heavy-Duty Hospital
Size 4.21 H x 1.77 W x 1.56 D IN Voltage Rating 125 V
Amperage Rating 15 A Number of Poles 2
Number of Wires 3 Connection Type Back Wired,Side Wired
Short Circuit Rating 5 KAMP Material Polycarbonate
Color Ivory Grounding Self-Grounding
Mounting Type Box Environmental Conditions Flammability (Rated V-2 per UL94)
Standards NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) Application Commercial
UPC 078477434772

Packages

1 - Unit 10 - Crate 1300 - Pallet
