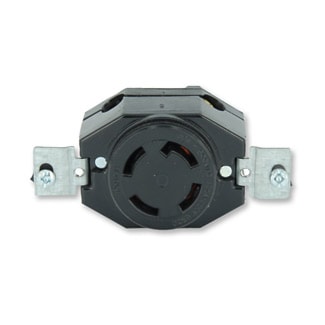

LEVITON 3430 Flush Mount Locking Receptacle Locking Single Receptacle 30 A, Non-Nema Black
lev3430
LEVITON 3430 Flush Mount Locking Receptacle Locking Single Receptacle 30 A, Non-Nema Black
Price
$133.51
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:3430
Description
Leviton's line of extra heavy-duty industrial grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. These Industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Locking Devices |
| Item Name | Locking Single Receptacle | Type | Flush Mount Locking Receptacle |
| Grade | Commercial | Size | 3.62 H x 1.70 W x 1.43 D IN |
| Voltage Rating | 120/208 V | Amperage Rating | 30 A |
| Number of Poles | 4 | Number of Wires | 4 |
| Connection Type | Back and Side Wired | NEMA Rating | Non-Nema |
| Conductor Size | 16-8 AWG | Material | Nylon |
| Color | Black | Phase | 3 |
| Dielectric Strength | 2000 V | Grounding | Non-Grounding |
| Contact Material | Brass | Dimensions | 3.62 in H x 1.7 in W x 1.43 in D |
| Mounting Type | Box, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Listed 498 (File E13399) |
| Application | For Commercial | UPC | 078477821596 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 2640 - Pallet |
