lev1203lhw

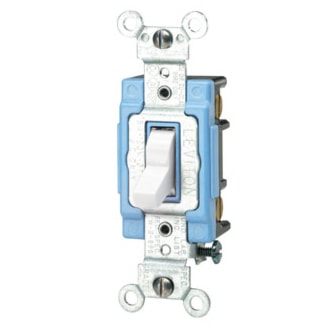

LEVITON 1203-LHW Toggle Switch 3-Way 15 A, 120 V, Back and Side Wire
lev1203lhw
LEVITON 1203-LHW Toggle Switch 3-Way 15 A, 120 V, Back and Side Wire
Price
$74.88
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1203-LHW
Description
Leviton’s Industrial lighted handle extra heavy-duty specification grade toggle switch provide top performance in punishing industrial applications. Fully enclosed switch mechanism in rugged housing for strength, track and arc resistance. Self-grounding clip.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Toggle Switch | Type | 3-Way |
| Voltage Rating | 120 V | Amperage Rating | 15 A |
| Number of Poles | 1 | Actuator | Toggle |
| Color | White | Grade | Commercial |
| Wiring Configuration | Back and Side Wire | Terminal Connection | Screw |
| Material | Thermoplastic | Dimensions | 1.31 in W x 1.6 in D x 46 in H |
| Mounting | Box, Flush, Screw | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 111 (File 152105), UL Fed Spec WS896E (File E7458), UL 20, RoHS Compliant |
| Application | Commercial | UPC | 078477239452 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 2640 - Pallet |
