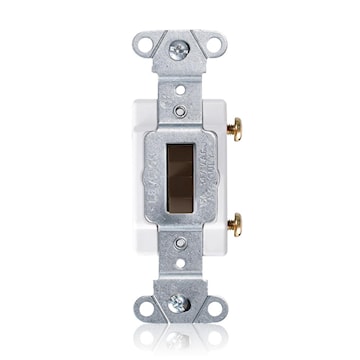

LEVITON 18201-B Toggle Switch Single Pole Toggle AC Switch 15 A, 347 VAC, Back and Side Wired
lev18201b
LEVITON 18201-B Toggle Switch Single Pole Toggle AC Switch 15 A, 347 VAC, Back and Side Wired
Price
$32.82
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:18201-B
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | Comm Switches |
| Item Name | Toggle Switch | Type | Single Pole Toggle AC Switch |
| Voltage Rating | 347 VAC | Amperage Rating | 15 A |
| Number of Poles | 1 | Actuator | Cam, Toggle |
| Color | Brown | HP Rating | 0.5 hp at 120 V, 2 hp at 240 - 277/347 V |
| Grade | Industrial | Action | SP |
| Wiring Configuration | Back and Side Wired | Terminal Connection | Screw Terminal |
| Operating Cycles | 50000 | Material | Plastic |
| Dimensions | 1.31 in W x 13 in D x 46 in H | Mounting | Wallbox |
| Standards | Federal Specification WS896, NEMA WD-1 and WD-6, ANSI Approved, UL Listed E-7458, CSA Certified 152105, NOM Certified 057 | Application | For Industrial Use |
| UPC | 078477240069 |
Packages
| CH - Unit | 10 - Box | 20 - Crate | 4160 - Pallet |
