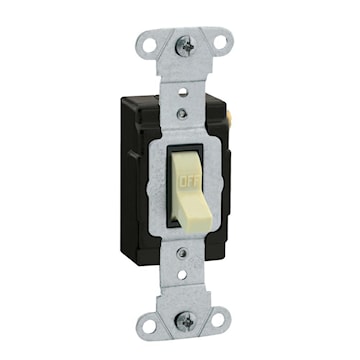

LEVITON 18201-I Industrial Grade Toggle Switch Single Pole Toggle AC Switch 15 A, 347 VAC, Back and Side Wire
lev18201i
LEVITON 18201-I Industrial Grade Toggle Switch Single Pole Toggle AC Switch 15 A, 347 VAC, Back and Side Wire
Price
$19.82
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:18201-I
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability. Heavy gauge copper alloy brush arm for superior performance. Large silver alloy contacts for long life prevent sticking, welding and excessive pitting. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. Wire lead switches also available for fast and easy installation.
Specifications
| Brand Name | Leviton | Sub Brand | Comm Switches |
| Item Name | Industrial Grade Toggle Switch | Type | Single Pole Toggle AC Switch |
| Voltage Rating | 347 VAC | Amperage Rating | 15 A |
| Number of Poles | 1 | Actuator | Cam, Rocker/button |
| Color | Ivory | HP Rating | 1/2 hp at 120 V, 2 hp at 240 - 347 V |
| Grade | Industrial | Action | Off |
| Wiring Configuration | Back and Side Wire | Terminal Connection | Screw |
| Operating Cycles | 50000 | Material | Thermoplastic, Brass and Steel Screw, Steel Strap, Silver Cadmium-Oxide Contact |
| Dimensions | 1.31 in W x 13 in D x 46 in H | Mounting | Wallbox |
| Standards | UL Fed Spec WS896, NEMA (WD-1, WD-6), ANSI, UL Listed (E-7458), CSA Certified (152105), NOM Certified (057) | Application | Industrial |
| UPC | 078477240045 |
Packages
| 1 - Unit | 10 - Box | 20 - Crate | 4160 - Pallet |
