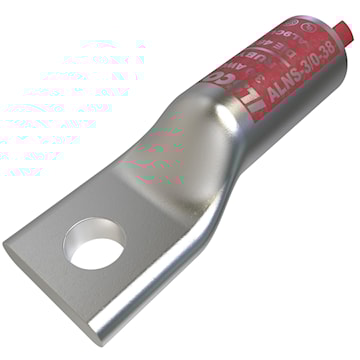

ILSCO ALNS-3/0-38 Lug compression aluminium 3/0AWG 1H ruby 3/8in
ilsalns3/038
ILSCO ALNS-3/0-38 Lug compression aluminium 3/0AWG 1H ruby 3/8in
Price
$36.76
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:ALNS-3/0-38
Description
Aluminum compression lug, chamfered barrel, color coded. Manufactured from high strength aluminum alloy. Provides low contact resistance, maximum conductivity and excellent crimping characteristics. Ensures reliability for copper or aluminum conductors. Prevents oxides from forming.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Type | ALNS:1 HOLE LONG BARREL | Number of Holes | 1 |
| Barrel Length | 1.355 in | Material | Aluminum |
| Voltage Rating | 35000 V | Barrel Type | Long |
| Strip Length | 36.004 mm | Temperature Rating | 90 °C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Aluminum Compression Lug |
| UPC | 783669690415 |
Packages
| 1 - Unit | 10 - Box |
