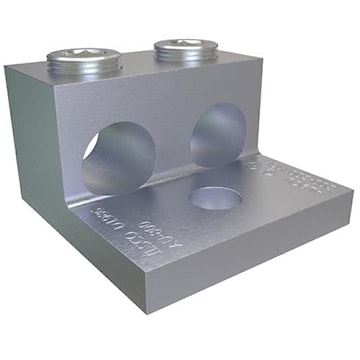

ILSCO AU-800 Lug mechanical aluminium 2C 800-300kcmil 5/8in
ilsau800
ILSCO AU-800 Lug mechanical aluminium 2C 800-300kcmil 5/8in
Price
$91.05
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:AU-800
Description
Dual rated aluminum mechanical lug, two conductor. Manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | ILSCO | Sub Brand | ILSCO |
| Type | AU:2 CONDUCTOR AL/CU | Conductor Type | Stranded |
| Material | Aluminum | Number of Conductors | 2 |
| Voltage Rating | 35,000 V | Mounting Hole Size | 0.656 in |
| Temperature Rating | 90 degrees C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Application | Mechanical Lug, Two Conductor | UPC | 783669006803 |
Packages
| 1 - Unit | 3 - Box |
