ilslu4
ILSCO LU-4 Lug mechanical cu 2C 350kcmil-1/0AWG 3/8in 1h
ilslu4
ILSCO LU-4 Lug mechanical cu 2C 350kcmil-1/0AWG 3/8in 1h
Price
$99.01
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:LU-4
Description

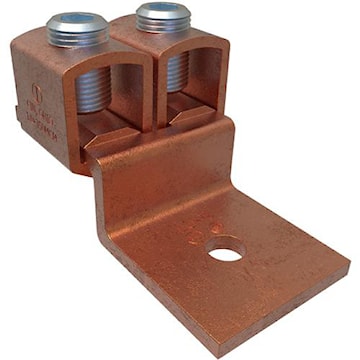

Two conductor, once hole copper mechanical lug. Manufactured from electrolytic seamless copper tubing and strip stock. Compact design, re-usable. Provides maximum conductivity and strength. Saves space and reduces installation time. Ensures reliability for copper conductor.
Specifications
| Brand Name | ILSCO | Sub Brand | ILSCO |
| Type | LU:2 COND 1 HOLE OFFSET | Conductor Type | Stranded |
| Material | Copper | Number of Conductors | 2 |
| Voltage Rating | 35,000 V | Mounting Hole Size | 0.406 in |
| Temperature Rating | 90 degrees C | Finish | NA |
| Color | Copper | Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed |
| Application | Mechanical Lug, One Conductor | UPC | 783669592955 |
Packages
| 1 - Unit | 6 - Box |
