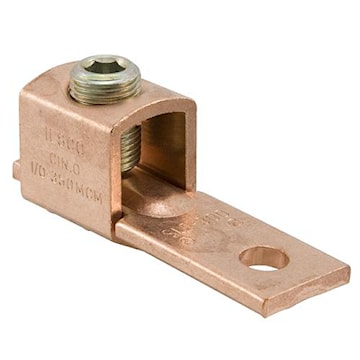

ILSCO SLS-300 Lug mechanical copper 350kcmil-1/0AWG 3/8in 1-hl

Price $76.49 / EA
Inventory
Available for backorder
Qty EA
Manufacturer:ILSCO
Manufacturer #:SLS-300

Description

Copper mechanical lug, one conductor, one hole. Manufactured from electrolytic copper tubing and strip stock. Provides maximum conductivity and strength. Saves space and reduces installation time. Saves space and reduces installation time. Permits inventories to be kept to a minimum. Provides efficient use and flexibility in the field. Ensures reliability for copper conductor.

Specifications

Brand Name Ilsco Sub Brand ClearChoice
Type SLU, Offset Tongue, Straight Conductor Type Stranded
Material Copper Number of Conductors 1
Voltage Rating 35000 V Mounting Hole Size 0.406 in
Temperature Rating 90 °C Finish NA
Color Copper Standards CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed
Application For Terminating Connector UPC 783669824520

Packages

1 - Unit 18 - Box
