ilspbtd121/0
ILSCO PBTD-12-1/0 INSUL AL MECH (12) 1/0-14 DUALT UL CSA
ilspbtd121/0
ILSCO PBTD-12-1/0 INSUL AL MECH (12) 1/0-14 DUALT UL CSA
Price
$308.4300
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:PBTD-12-1/0
Description

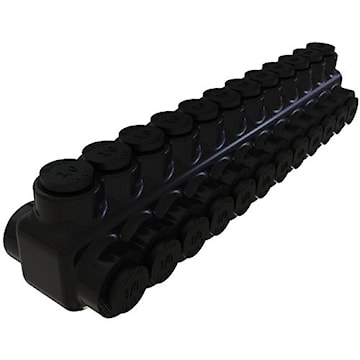

Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 12 conductors, 12 ports/wireways, Plastisol insulation, Drive Type Main 3/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
Specifications
| Brand Name | ILSCO | Sub Brand | Nimbus |
| Type | PBTD:INS BLK TWO SIDE TAP | Voltage Rating | 600 V |
| Number of Ports | 12 | Number of Conductors | 12 |
| Material | Aluminum | Conductor Type | Solid,Stranded |
| Connection Type | Mechanical | Temperature Rating | 90 degrees C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Insulated Multi-Tap Connector, Dual Sided Entry |
| UPC | 783669077568 |
Packages
| 1 - Unit | 3 - Box |
