ilspbtd8250
ILSCO PBTD-8-250 INSUL AL MECH (8) 250-6 DUAL TUL CSA
ilspbtd8250
ILSCO PBTD-8-250 INSUL AL MECH (8) 250-6 DUAL TUL CSA
Price
$234.3400
/ EA
Inventory
Available for backorder
Package: 3 / Box
Manufacturer:ILSCO
Manufacturer #:PBTD-8-250
Description

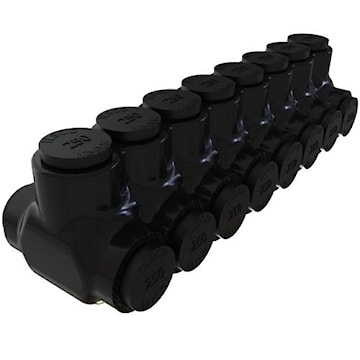

Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX®, 8 conductors, 8 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
Specifications
| Brand Name | Ilsco | Sub Brand | Nimbus® |
| Type | Two Side, PBTD, Insulated | Voltage Rating | 600 V |
| Number of Ports | 8 | Number of Conductors | 8 |
| Material | Aluminum | Conductor Type | Stranded |
| Connection Type | Mechanical | Temperature Rating | 90 °C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Insulated Multi-Tap Connector, Dual Sided Entry |
| UPC | 783669078008 |
Packages
| 1 - Unit | 3 - Box |
