ilspbtd9750

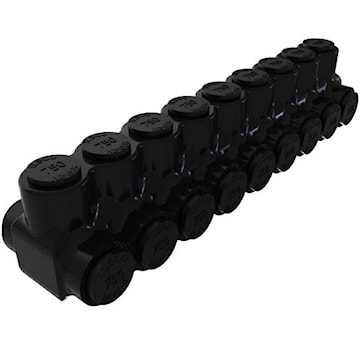

ILSCO PBTD-9-750 INSUL AL MECH (9) 750-250 DUALT UL CSA
ilspbtd9750
ILSCO PBTD-9-750 INSUL AL MECH (9) 750-250 DUALT UL CSA
Price
$468.69
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:PBTD-9-750
Description
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 750 kcmil - 250 kcmil, Contains DE-OX®, 9 conductors, 9 ports/wireways, Plastisol insulation, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Black, 1 poles,
Specifications
| Brand Name | Ilsco | Sub Brand | Nimbus® |
| Type | Two Side, PBTD, Insulated | Voltage Rating | 600 V |
| Number of Ports | 9 | Number of Conductors | 9 |
| Material | Aluminum | Conductor Type | Stranded |
| Connection Type | Mechanical | Temperature Rating | 90 °C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Insulated Multi-Tap Connector, Dual Sided Entry |
| UPC | 783669078800 |
Packages
| 1 - Unit |
