ilspbtd9250
ILSCO PBTD-9-250 INSUL AL MECH (9) 250-6 DUAL TUL CSA
ilspbtd9250
ILSCO PBTD-9-250 INSUL AL MECH (9) 250-6 DUAL TUL CSA
Price
$277.7600
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:PBTD-9-250
Description

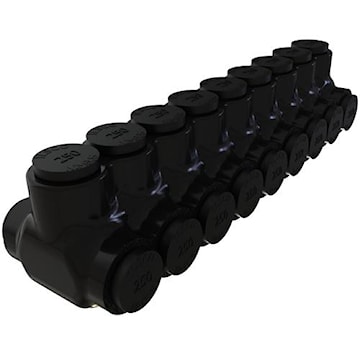

Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX®, 9 conductors, 9 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,
Specifications
| Brand Name | ILSCO | Sub Brand | Nimbus |
| Type | PBTD:INS BLK TWO SIDE TAP | Voltage Rating | 600 V |
| Number of Ports | 9 | Number of Conductors | 9 |
| Material | Aluminum | Conductor Type | Stranded |
| Connection Type | Mechanical | Temperature Rating | 90 degrees C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Insulated Multi-Tap Connector, Dual Sided Entry |
| UPC | 783669078022 |
Packages
| 1 - Unit | 3 - Box |
