lev16352r

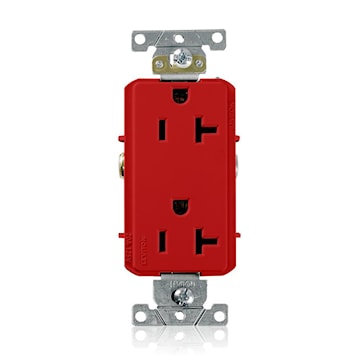

LEVITON 16352-R Decora Plus™ Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle 20 A, Red
lev16352r
LEVITON 16352-R Decora Plus™ Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle 20 A, Red
Price
$34.88
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:16352-R
Description
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Straight Blade Duplex Receptacle | Type | Duplex Outlet,Straight Blade |
| Grade | Commercial Specification | Size | 1.31 in W x 1.14 in D x 46 in H |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wired | Conductor Size | 14-10 AWG |
| Color | Red | Maximum Load Capacity | 1 hp |
| Dielectric Strength | 2000 V | Grounding | Self Grounding |
| Mounting Type | Wallplate | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-6), ANSI (C-73), NOM Certified (057), CSA Certified (File 152105), UL Listed (File E-13393), UL498 Listed |
| Application | For Commercial use | UPC | 078477663097 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 6400 - Pallet |
